AF-P8-00-OF 8-channel power distribution module with fuses
Description
Power distribution module, 8-channel, with polymer fuses, Vin 10–56 VDC, Iout 0.75 A/channel.
Key features and functions:
- compact module size
- wide input voltage range
- independent short-circuit and overload protection for each output channel
- clear LED status indication
- easy installation in ABOX series enclosures with 10.8 mm hole pattern
AF-P8-00-OF distributes the input power to up to 8 devices. Each power output features independent overload and short-circuit protection. A red LED indicates the presence of voltage on each output.
The device complements the APS series power supplies and AUPS series buffer power supplies designed for CCTV, access control, and alarm systems.
The OF (Open Frame) design allows the device to be installed in any enclosure, although the most convenient method is to use dedicated ABOX series enclosures and mounting plates with a special 10.8 mm hole pattern. The spacing matches the mounting holes of the built-in modules. This system allows vertical or horizontal installation of selected devices in any perforated section of the enclosure or mounting plate.
Examples of applications

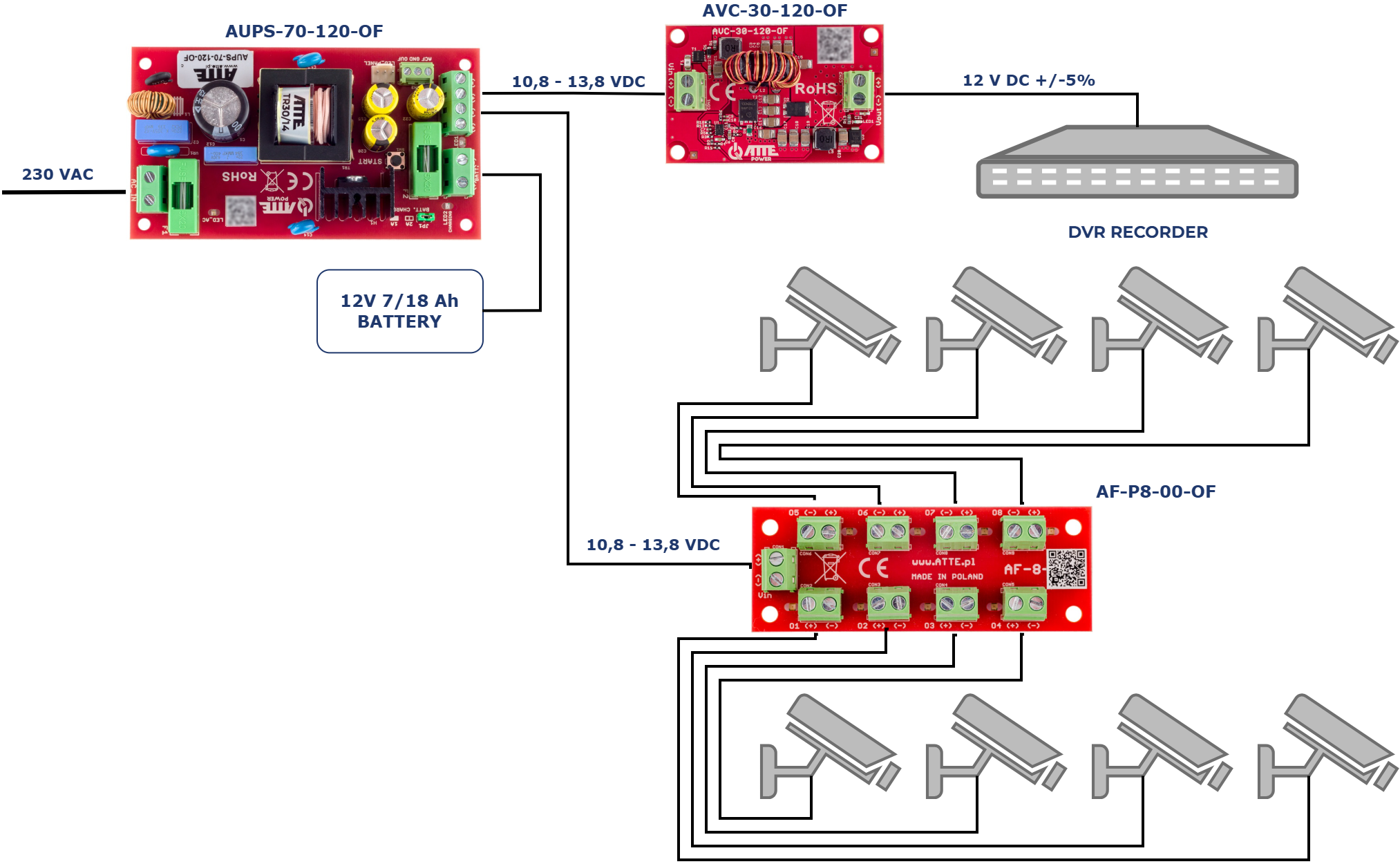

Example application of the AF-P8-00-OF, along with the AUPS-70-120-OF, to distribute voltage to 8 cameras.
Technical data
| Output voltage: | Vout = Vin |
| Input voltage: | 10...56 VDC |
| Output current: | 8 x 0.75 A – maximum per channel |
| Protection: | 0.75A polymer fuse for each channel |
| Power indication: | LED (red) - power present |
| Temperature range: | -25°C ... +50°C |
| Dimensions: | 85 x 32 x 17 mm |
| Weight: | 0,03 kg |
| Housing construction: | Open-frame module |
| Assembly: | Snap-in spacer pins, mounting holes in 10.8 mm hole pattern |
| EAN code: | 5902143691235 |
| PKWiU code: | 27.12.31.0 |
| HS code: | 8537 10 |
| CN2020 code: | 8537 10 98 |
