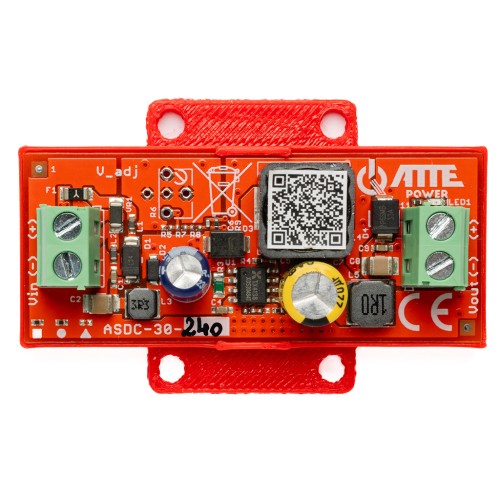

ASDC-30-240-OF Step-Down Converter with output of 24V 20W
Description
DC/DC step-down converter, Vin 26...50 VDC, Vout 24 VDC, Iout 1.3 A, open-frame module.
Key features and functions:
- power solution for devices requiring 24 V from a 48 V PoE line
- wide input voltage range
- compact module size
The ASDC series of DC/DC converters are high-efficiency step-down modules. The device provides a stable power supply for alarm system components, cameras, WLAN devices, and more.
The OF (Open Frame) design allows the device to be installed in any enclosure, although the most convenient method is to use dedicated ABOX series enclosures and mounting plates with a special 10.8 mm hole pattern. The spacing matches the mounting holes of the built-in modules. This system allows vertical or horizontal installation of selected devices in any perforated section of the enclosure or mounting plate.
Technical data
| Input Voltage: | 26 ... 50 VDC |
| Output Voltage: | 24 VDC +/-3% |
| Output power: | 30 W @48 V |
| Efficiency: | 92% @VIN=48 V, POUT=24 W |
| Converter idle current: | 2,5 mA @48 V |
| Protections: | Output short-circuit protection, Overload protection, Thermal protection, Input overvoltage protection |
| Output voltage indication: | LED 1 (red) - output voltage present |
| Temperature range: | -25°C ... +50°C |
| Dimensions: | 25 x 60 x 16 mm |
| Weight: | 0,02 kg |
| Housing construction: | Open-frame module |
| Assembly: | Snap-in spacer pins, mounting holes in 10.8 mm hole pattern |
| EAN code: | 5902143690665 |
| PKWiU code: | 27.90.41.0 |
| HS code: | 8504 40 |
| CN2020 code: | 8504 40 95 |
