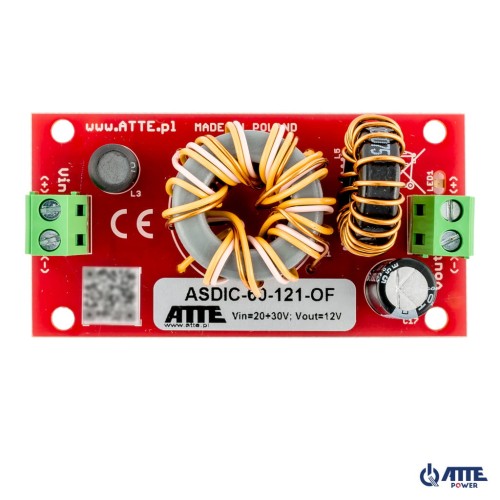

ASDIC-60-121-OF Isolated step-down converter to 12V
Description
Isolated DC/DC converter, step-down, Vin 20...30 VDC, Vout 12 VDC, Iout 5 A, Pout 60 W, open-frame module.
Key features and functions:
- galvanic isolation between the converter input and output
- stable output voltage of 12 VDC
- elimination of interference occurring in non-isolated DC power systems.
- compact size
ASDIC series modules are high-efficiency step-down DC/DC converters designed for use in CCTV systems. They can be used in applications where galvanic isolation between circuits is required, for example to eliminate interference in non-isolated DC power supply systems.
The OF (Open Frame) design allows the device to be installed in any enclosure, although the most convenient method is to use dedicated ABOX series enclosures and mounting plates with a special 10.8 mm hole pattern. The spacing matches the mounting holes of the built-in modules. This system allows vertical or horizontal installation of selected devices in any perforated section of the enclosure or mounting plate.
Examples of applications

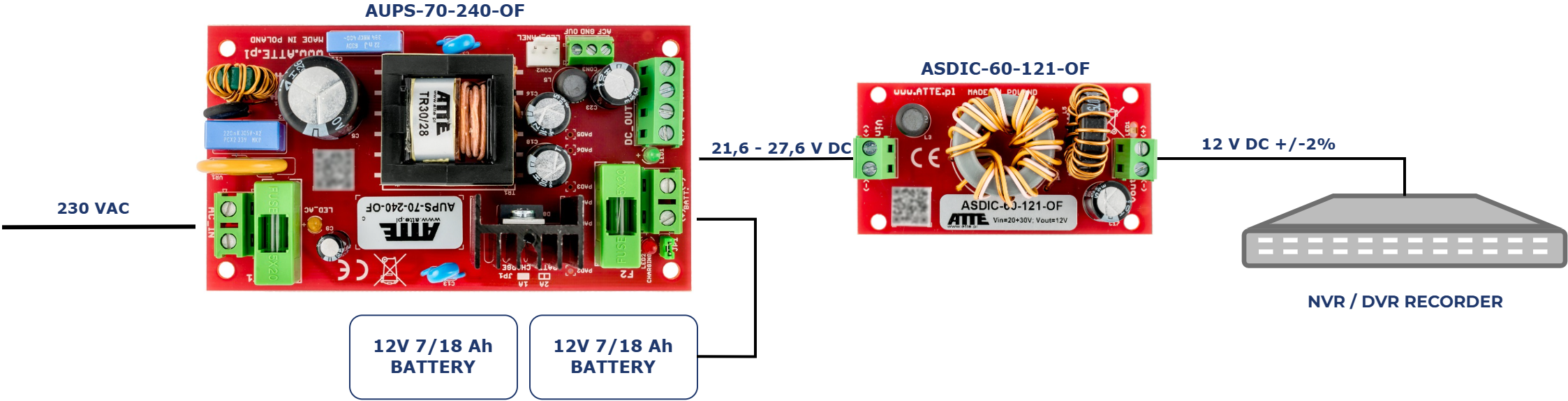

Example application of the ASDIC-60-121-OF for powering an NVR/DVR recorder.
Technical data
| Input Voltage: | 20 ... 30 VDC |
| Output Voltage: | 12 VDC +/-2% |
| Output power: | 60 W @24 V |
| Efficiency: | 90% @50 W |
| Isolation: | 1,5 kV |
| Protections: | Output short-circuit protection, Overload protection |
| Temperature range: | -25°C ... +50°C |
| Dimensions: | 75 x 39 x 20 mm |
| Weight: | 0,051 kg |
| Housing construction: | Open-frame module |
| Assembly: | Snap-in spacer pins, mounting holes in 10.8 mm pattern |
| EAN code: | 5902143690689 |
| PKWiU code: | 27.90.41.0 |
| HS code: | 8504 40 |
| CN2020 code: | 8504 40 95 |
