ASUC-15-482 Passive PoE step-up adapter with 48 V output
Description
ASUC-15-482 is a PoE adapter with a step-up converter. The device converts an input voltage of 10...30 VDC to 48 VDC and injects it into the UTP cable, providing power to an IP camera via PoE.
A typical application for this module is powering a single PoE IP camera by generating the 48 VDC PoE supply voltage from a 12 VDC or 24 VDC power source, such as a buffered power supply.
The device also ensures that data transmission is maintained between the input and output connectors.
Key features and functions:
- possibility of powering the 48 VDC PoE camera from any 10 … 30 VDC power supply
- data transmission between connectors
- fixed output voltage of 48 VDC
- low internal heating of the housing thanks to the high efficiency of the converter
- compact size
The yellow LED on the RJ45 output port indicates that the PoE output voltage is present.
The device’s total power budget is 15 W.
The device has an IP20 protection rating, to ensure protection against the effects of the weather and moisture condensation, a suitable enclosure (minimum IP44) must be used.
The device is very compact, allowing for easy installation in small enclosures.
The adapter is equipped with a plastic base designed to protect the electronics from mechanical damage.
Installation notes
- ASUC-15-482 is a new version of the ASUC-15-482-HS adapter and can be used as a direct replacement.
Examples of applications

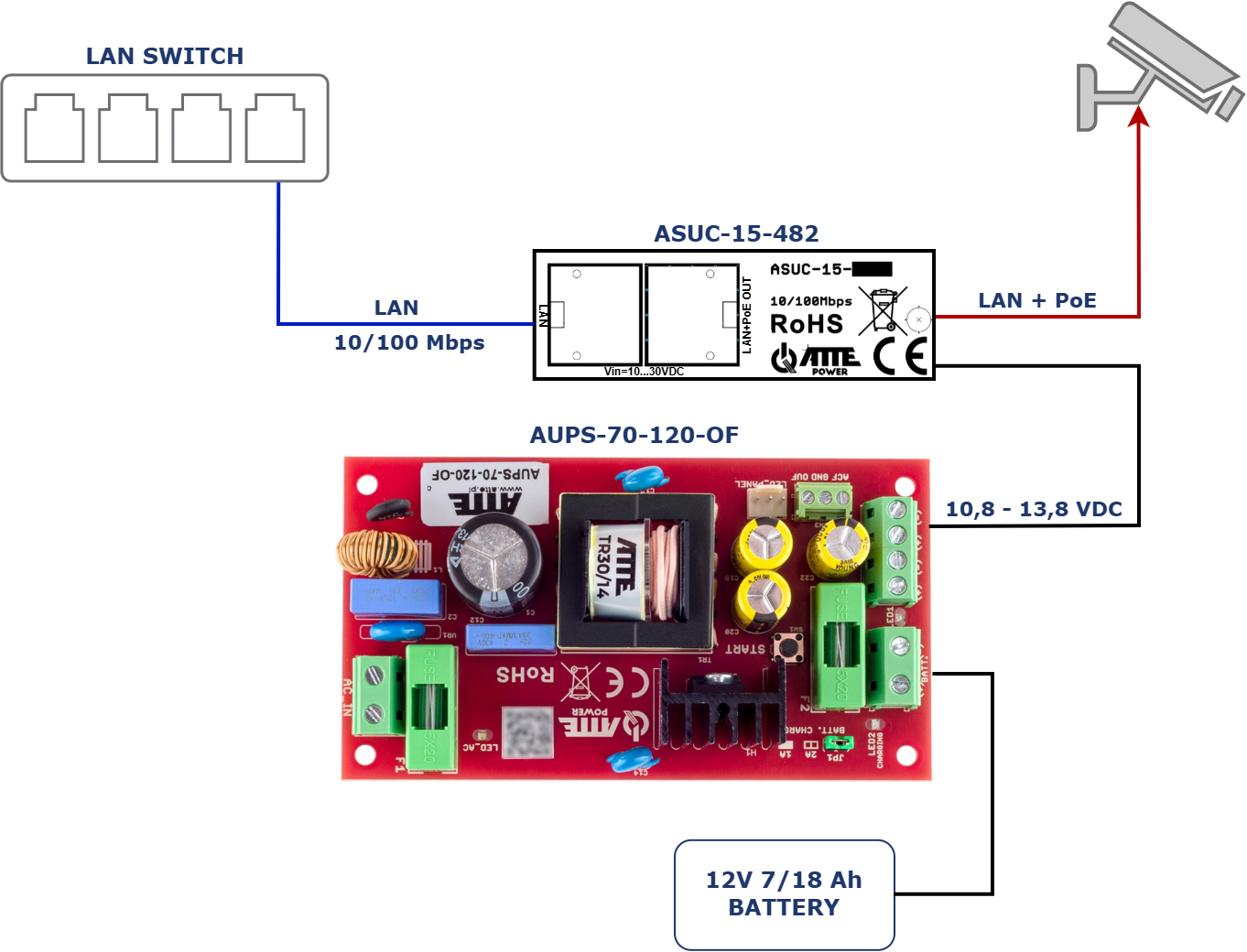

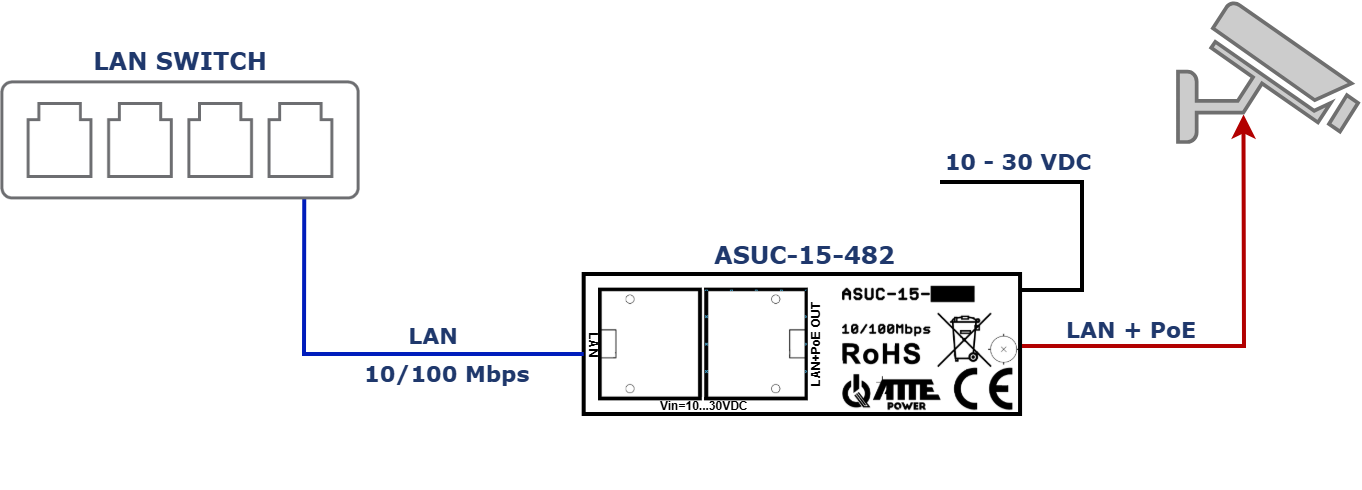

Example of using ASUC-15-482 PoE adapter, together with the AUPS-70-120-OF buffered power supply, to power a PoE IP camera with battery backup.

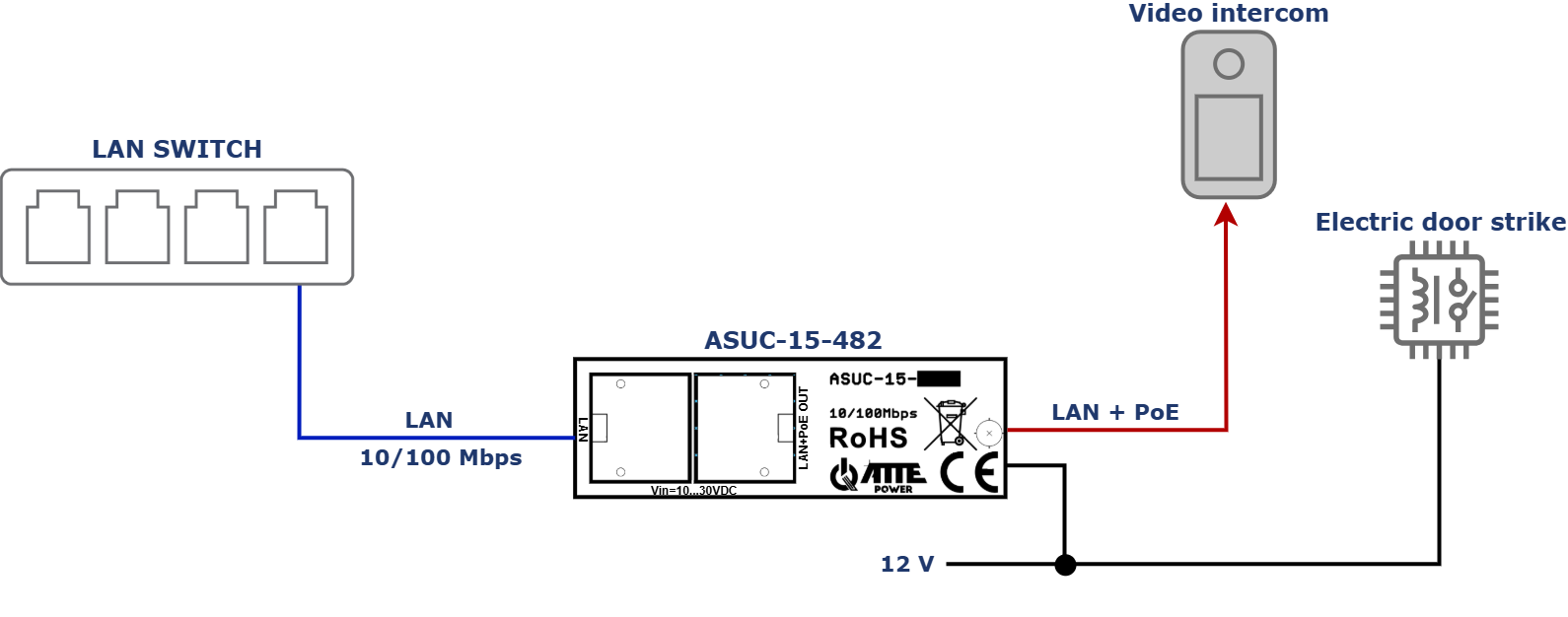

Example of using ASUC-15-482 PoE adapter to power video intercom from an existing 12 V power line.
Technical data
| Total number of ports: | 1 LAN port, 1 LAN+PoE OUT port |
| PoE IN: | LAN |
| PoE OUT: | LAN+PoE OUT |
| LAN 10/100Mbps ports: | LAN |
| LAN + PoE OUT 10/100Mbps ports: | LAN+PoE OUT |
| Input Voltage: | 10 ... 30 VDC (cable) |
| Output PoE Voltage: | 48 VDC +/- 2% |
| Maximum output power from the port: | 15 W |
| Surge protection: | LAN, LAN+PoE OUT |
| Operation signalling: | LED in the RJ45 port (yellow) - power and output PoE voltage present |
| Temperature range: | -25°C ... +65°C |
| Dimensions: | 63 x 20 x 19 mm |
| Weight: | 0,018 kg |
| IP rating: | IP20 |
| Housing construction: | Plastic base |
| EAN code: | 5902143692157 |
| PKWiU code: | 27.90.41.0 |
| HS code: | 8504 40 |
| CN2020 code: | 8504 40 95 |
