ASUC-30-480-OF Step-Up Converter with output of 48V 30W
Description
DC/DC step-up converter, Vin 10...30 VDC, Vout 48 VDC, Pout 30 W, open-frame module.
Key features and functions:
- wide input voltage range
- fixed output voltage of 48 VDC
- low device heating due to high converter efficiency
- high output power despite the module's compact size
- input reverse polarity protection
ASUC-30-480-OF is a high-efficiency, non-isolated DC/DC step-up converter. It operates over a wide input voltage range and provides a fixed 48 VDC output. A typical application for this module is stepping up 12 VDC or 24 VDC (e.g., from a buffer power supply) to 48 VDC to power a PoE switch.
The OF (Open Frame) design allows the device to be installed in any enclosure, although the most convenient method is to use dedicated ABOX series enclosures and mounting plates with a special 10.8 mm hole pattern. The spacing matches the mounting holes of the built-in modules. This system allows vertical or horizontal installation of selected devices in any perforated section of the enclosure or mounting plate.
Examples of applications

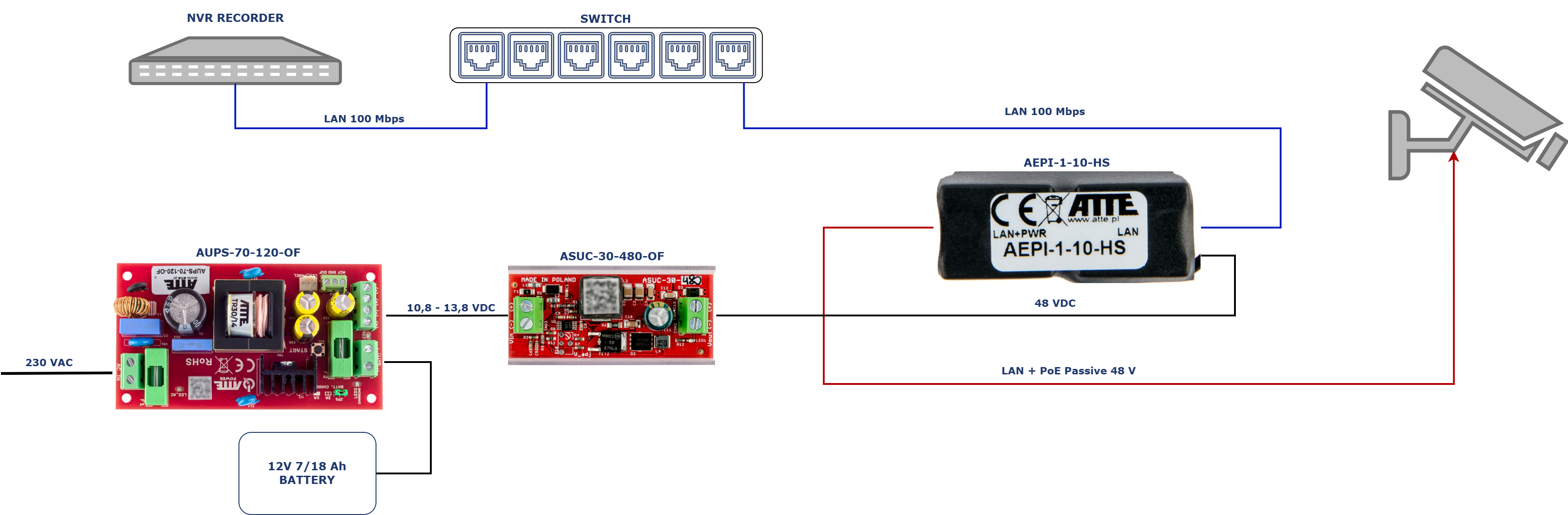

Example of using the ASUC-30-480-OF to power a single PoE IP camera.
Technical data
| Input Voltage: | 10 ... 30 VDC |
| Output Voltage: | 48 VDC +/-2% |
| Output power: | 30 W @12V |
| Efficiency: | 90% @Vin = 12 V, Pout = 25 W |
| Converter idle current: | 18 mA @12 V |
| Output voltage indication: | LED 1 (red) - output voltage present |
| Temperature range: | -25°C ... +50°C |
| Dimensions: | 25 x 60 x 16 mm |
| Weight: | 0,02 kg |
| Housing construction: | Open-frame module |
| Assembly: | Snap-in spacer pins, mounting holes in 10.8 mm hole pattern |
| EAN code: | 5902143690740 |
| PKWiU code: | 27.90.41.0 |
| HS code: | 8504 40 |
| CN2020 code: | 8504 40 95 |
