AUPS-100-120-F Buffered SMPS 12V 8A 100W

Buffered switched-mode power supply (SMPS), Vin 230 VAC, Vout 10.8 ...13.8 VDC, Iout 8 A, Ich 1 / 2 A, Pout 100 W, ABOX-F indoor enclosure (space for 18 Ah battery).

Key features and functions:

• longer power backup time compared to traditional UPS-based systems
• energy savings and reduced enclosure heating thanks to the high power supply efficiency (90%)
• short-circuit protection (SCP), overload protection (OLP), over heat protection (OHP) and surge protection
• battery protection against: excessive discharge (UVP), overload and reverse polarity
• automatic switchover to battery operation in the event of mains power failure
• OUF and ACF open collector outputs for operation control and integration with other systems
• easy installation of additional modules with a 10.8 mm hole pattern
• possibility of storing excess cables inside the enclosure
• cable entry at the rear of the enclosure

Additional information:

• using an additional ASUC series converter allows the output voltage to be increased and adjusted to the installation requirements (e.g., 24/48/55 VDC)
• for receivers requiring a stable 12 VDC power supply, such as recorders and NAS drives, we recommend using an additional AVC or AVIC series stabilizing module
• to expand the power supply to 8 output channels, the AF-P8-00-OF fuse module should be used

The AUPS series buffer power supply is designed for CCTV systems, access control systems, and alarm systems. It provides a convenient solution for supplying buffered power to receivers requiring uninterrupted operation during periodic mains outages. Using a buffer power supply significantly extends system runtime compared to a standard UPS.

AUPS-100-120-F is designed to work with maintenance-free SLA batteries (gel and AGM).

ABOX series indoor enclosures provide a convenient solution for the aesthetic installation of devices and termination of cabling inside buildings. All enclosures are made of powder-coated steel sheet finished in semi-matt white. Production using a modern technological line ensures the highest quality and precision of workmanship. Each enclosure is equipped with a screw lock, removable door, and door tamper switch.

The available models feature dedicated perforation with a 10.8 mm hole pattern, compatible with the mounting hole spacing of installation modules. This system solution enables vertical or horizontal installation of selected devices in any perforated section of the enclosure.

Examples of applications

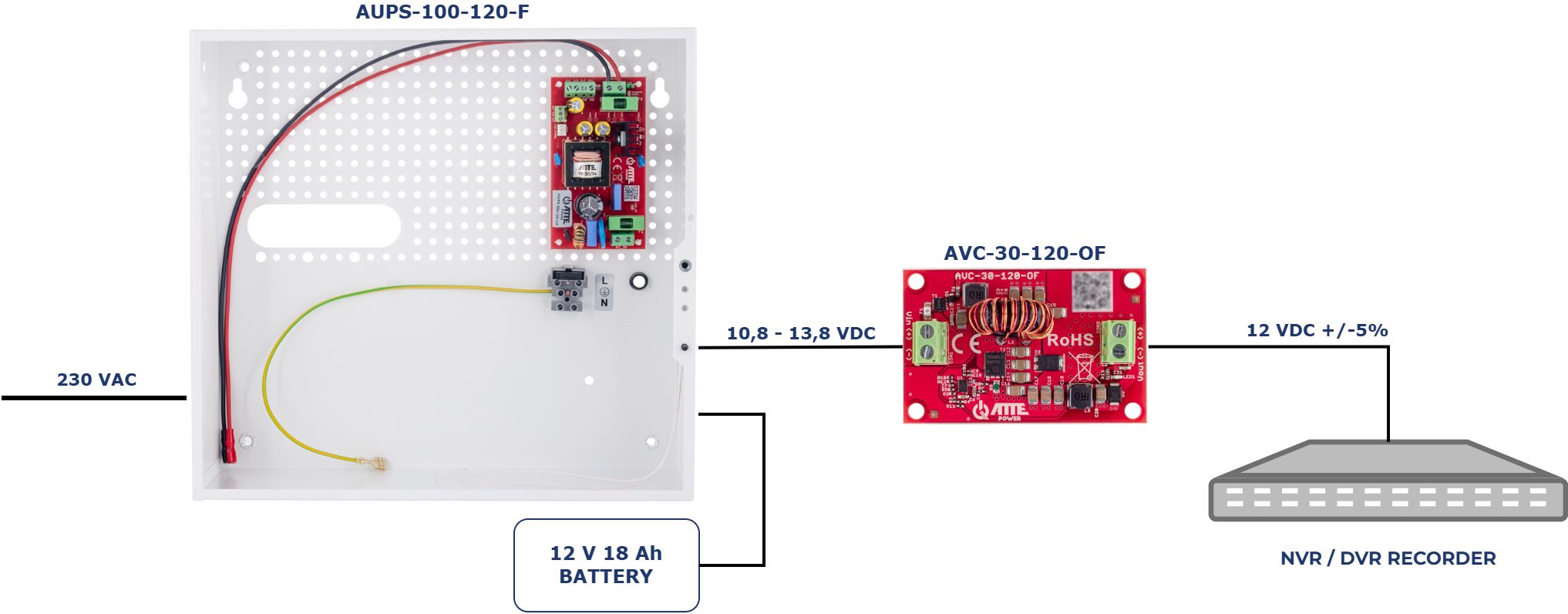

Example of using AUPS-100-120-F in combination with the AVC-30-120-OF module to power a recorder with battery backup.
