AVC-30-120-OF voltage stabilizing converter for powering a 12V recorder
Description
AVC-30-120-OF module is a high-efficiency DC/DC converter designed to power recorders, network drives, and other devices requiring a stable 12 VDC. It is an ideal solution for stabilizing voltage from buffer power supplies, whose output voltage varies between 10.8 V and 13.8 V depending on the operating mode (battery/mains).
The system is equipped with multiple functional protections ensuring reliable operation, including: 12 V output short-circuit protection, reverse polarity protection of the input voltage, 12V output and converter input surge protection.
Examples of applications

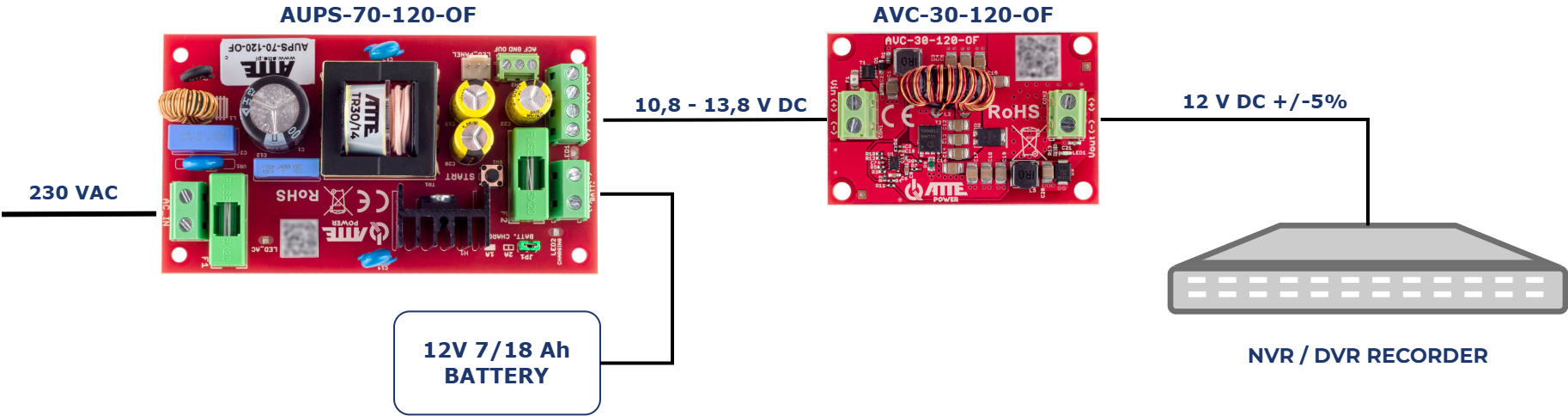

Example application of the AVIC-30-120-OF device for powering an NVR/DVR recorder.

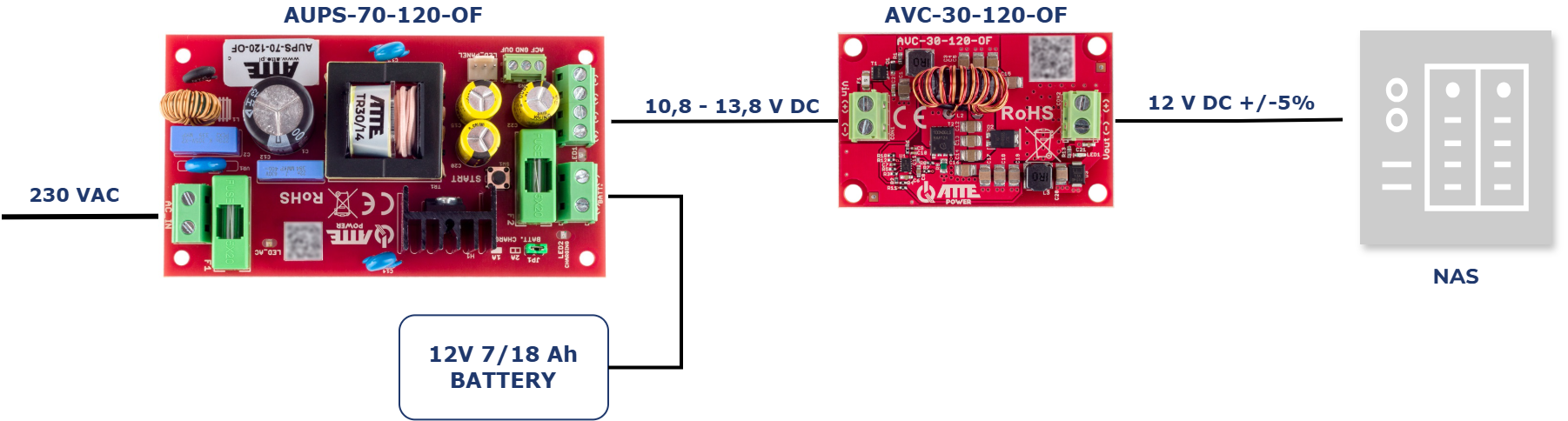

Example application of the AVIC-30-120-OF device for powering a NAS network drive.
Technical data
| Input Voltage: | 10 ... 30 VDC |
| Output Voltage: | 12 VDC +/-5% |
| Output power: | 30 W @12V |
| Efficiency: | 90% @Vin=12 V,Pout=30 W |
| Converter idle current: | 5 mA @12 V |
| Protections: | Output short-circuit protection at 3A; Reverse polarity protection of the input voltage; Input and output surge protection |
| Temperature range: | -25°C ... +50°C |
| Dimensions: | 40 x 60 x 24 mm |
| Weight: | 0,025 kg |
| Housing construction: | Open-frame module |
| Assembly: | Snap-in spacer pins, mounting holes in 10.8 mm hole pattern |
| EAN code: | 5902143690191 |
| PKWiU code: | 27.90.41.0 |
| HS code: | 8504 40 |
| CN2020 code: | 8504 40 95 |
