ASDC-100-120-OF Step-Down Converter, 12 V output, 100 W
Manufacturer:
ATTE
Product code:
ASDC-100-120-OF
Price:
Net price:
€30.79
Availability:
In stock
Dispatched within:
24 hours
Description
ASDC-100-120-OF is a step-down DC/DC converter. The device has an output voltage of 12 V.

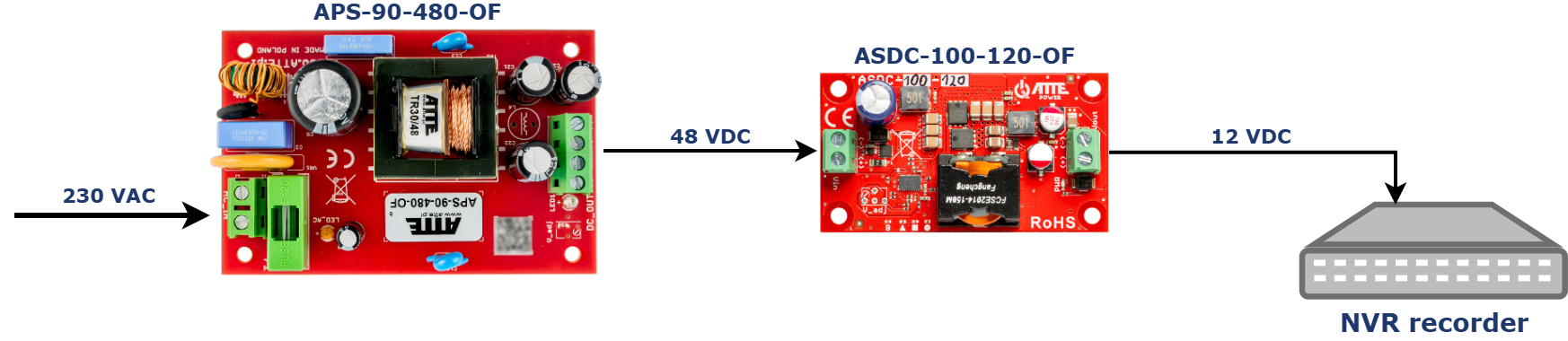

The module allows powering devices with a rated voltage of 12 V, such as IP cameras or NVR recorders.
The PWR LED (red) indicates voltage at the converter output.
Key features and functions:
- high module efficiency (>90%)
- wide input voltage range
- quick and easy setup with no configuration required
- wide operating temperature range (-25°C...+65°C)
- compact size
The OF (Open Frame) design allows the device to be installed in any enclosure, but the most convenient installation method is to use dedicated ABOX series enclosures and mounting plates equipped with 10.8 mm hole pattern.
Examples of applications

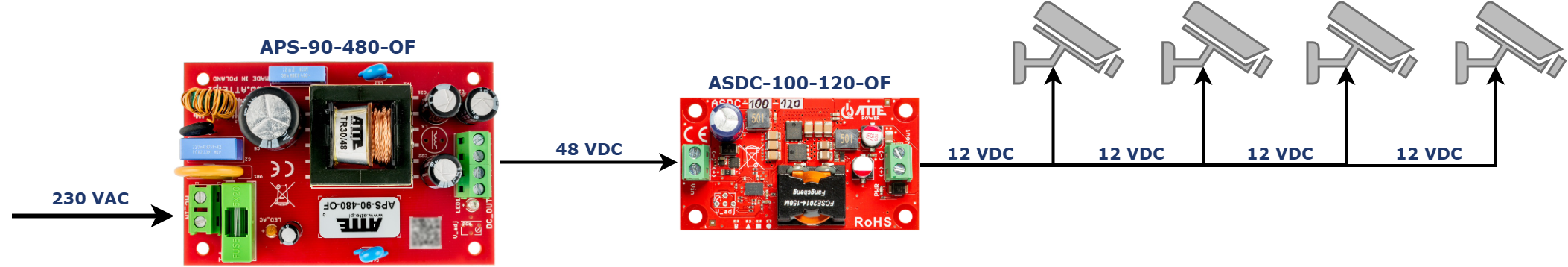

Example application of ASDC-100-120-OF for powering 4 IP cameras with 12 V.
Technical data
| Input Voltage: | 16...56 V |
| Output Voltage: | 12 V |
| Output current: | 8 A |
| Output power: | 100 W |
| Efficiency: | 92% @Vin=24V, Iout=8A |
| Converter idle current: | 26mA @48V |
| Protections: | Surge protection, Overload protection |
| Output voltage indication: | LED PWR (red) - converter output voltage indication |
| Temperature range: | -25 ... +65°C |
| Dimensions: | 77 x 42 x 18 mm |
| Weight: | 0,037 kg |
| Housing construction: | Open-frame module |
| Assembly: | Snap-in spacer pins, mounting holes in 10.8 mm hole pattern |
| EAN code: | 5902143691921 |
| PKWiU code: | 27.90.41.0 |
| HS code: | 8504 40 |
| CN2020 code: | 8504 40 95 |
