ASDC-200-AD1-OF Step-Down Converter with adjustable output 5...24 V, 200 W

Manufacturer: ATTE

Product code: ASDC-200-AD1-OF

Price: €37.88 37.88

Net price: €30.79

quantity pcs.

Description

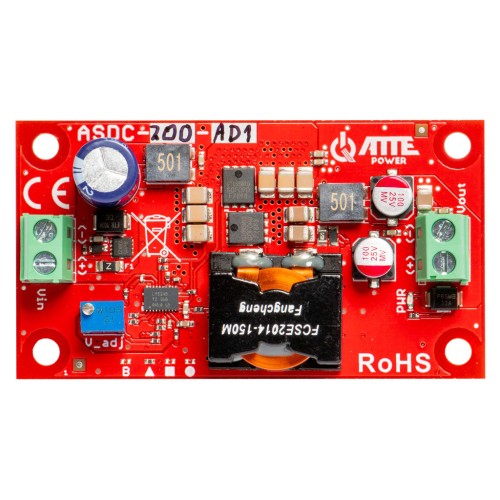

ASDC-200-AD1-OF is a step-down DC/DC converter with an adjustable output voltage in the range of 5 V to 24 V.

Thanks to its adjustable voltage output, the module allows powering devices with non-standard voltages.

Voltage adjustment is performed using an on-board potentiometer (V_adj).

The PWR LED (red) indicates voltage at the converter output.

Key features and functions:

wide voltage regulation range (5V...24V)
wide input voltage range (16V...56V)
high module efficiency
quick and easy setup with no configuration required
wide operating temperature range (-25°C...+65°C)
compact size

The OF (Open Frame) design allows the device to be installed in any enclosure, but the most convenient installation method is to use dedicated ABOX series enclosures and mounting plates equipped with 10.8 mm hole pattern.

Installation notes

The input voltage of the converter must always be higher than the output voltage.
The voltage difference between the input and output should be at least ~3 V.

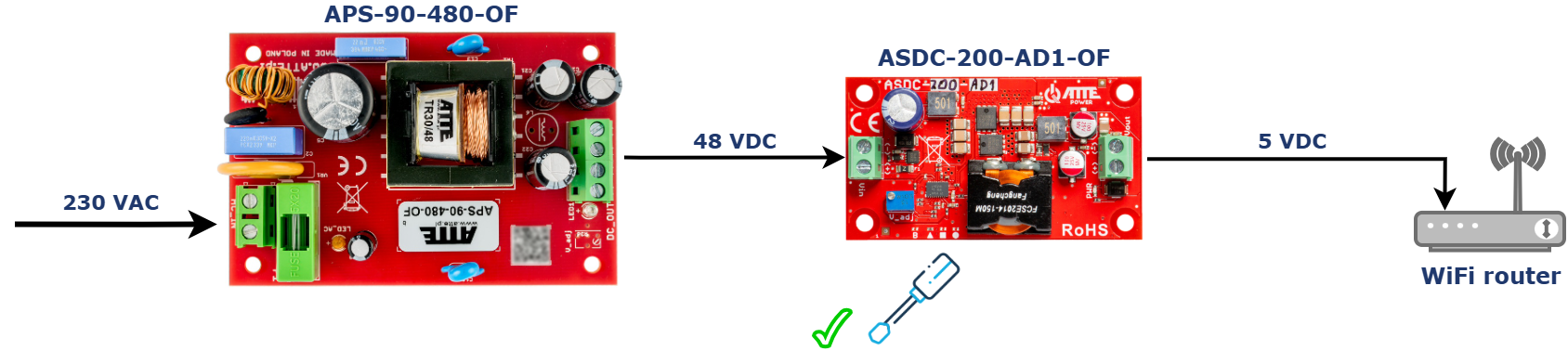

Examples of applications

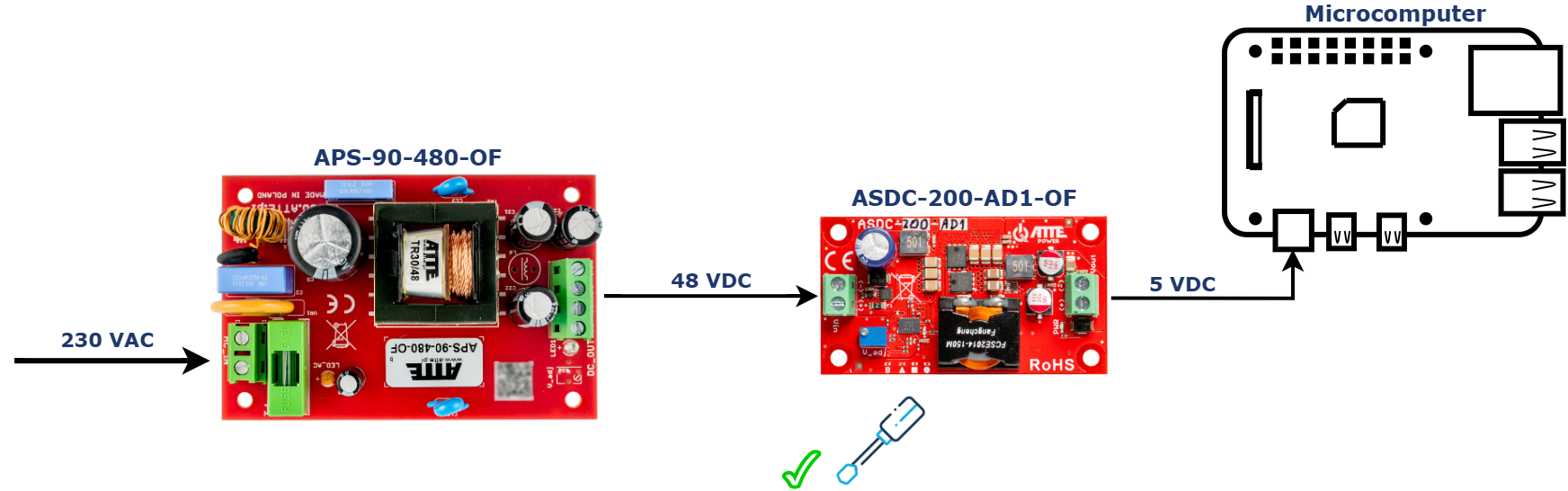

Example application of ASDC-200-AD1-OF for supplying a microcomputer with 5 V voltage.

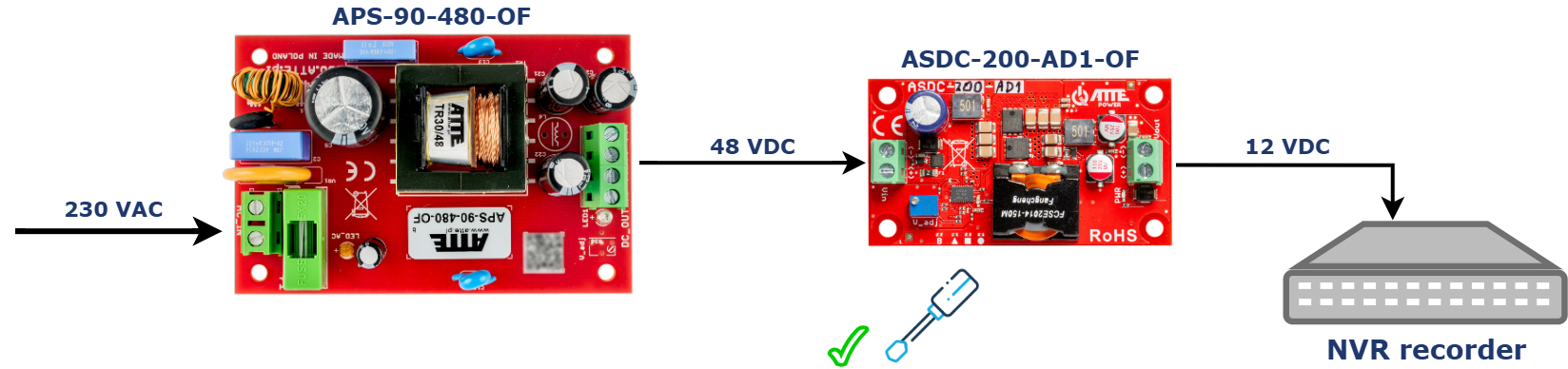

Example application of ASDC-200-AD1-OF for powering an NVR recorder with 12V voltage.

Technical data

Input Voltage:	16...56 V (Note: Vin > Vout)
Output Voltage:	5...24 V
Output current:	8 A
Output power:	200 W @Vout=24 V
Efficiency:	95% @Vin=55 V, Vout=24 V, Iout=8 A
Converter idle current:	26 mA @48 V
Protections:	Surge protection, Overload protection
Output voltage indication:	LED PWR (red) - converter output voltage indication
Temperature range:	-25 ... +65°C
Dimensions:	77 x 42 x 18 mm
Weight:	0,037 kg
Housing construction:	Open-frame module
Assembly:	Snap-in spacer pins, mounting holes in 10.8 mm hole pattern
EAN code:	5902143691938
PKWiU code:	27.90.41.0
HS code:	8504 40
CN2020 code:	8504 40 95
