ASW-5-50-OF 5-port gigabit LAN Switch 10/100/1000Mbps
Manufacturer:
ATTE
Product code:
ASW-5-50-OF
Price:
Net price:
€58.79
Availability:
In stock
Dispatched within:
24 hours
Description
ASW-5-50-OF is a universal 5-port gigabit network switch.
The device is especially recommended for systems that require higher network bandwidth, such as CCTV 4K Ultra HD monitoring.

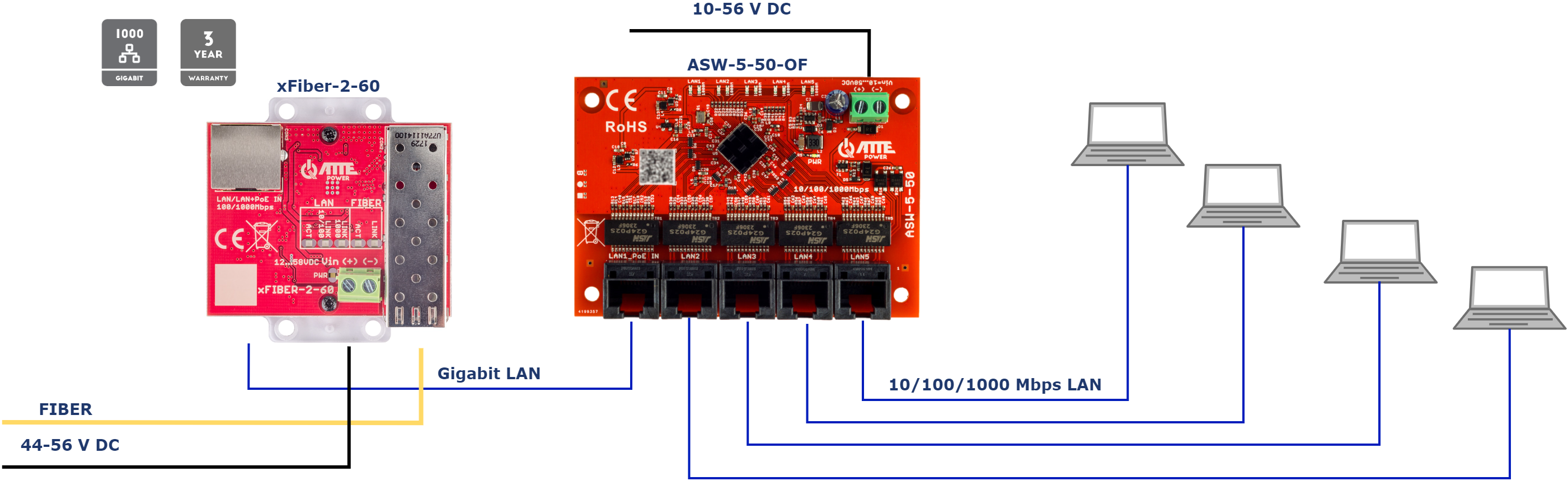

ASW-5-50-OF can be powered in two ways:
- via LAN1 - when power is supplied from the PoE line (PoE Passive and 802.3af)
- via Vin 10-58VDC screw connector
Key features and functions:
- Two ways to power the device
- Large supply voltage range 10..58VDC
- 5 Gigabit ports 10/100/1000Mbps
- Easy and quick commissioning without configuring parameters
- Low power consumption (<2W)
The open frame (OF) construction allows the device to be installed in any suitable third party housing. It is highly recommended however to use our dedicated ABOX series enclosures that come with a pre-drilled backplate (4,8mm diameter, pitch 10,8mm) allowing both horizontal and vertical installation
Technical data
| Total number of ports: | 5 LAN ports, 1 screw connector |
| PoE IN: | LAN 1 PoE IN |
| LAN 1000Mbps ports: | LAN 1 ... LAN 5 |
| Input Voltage: | 10 ... 58 VDC |
| Power consumption: | < 2W |
| Surge protection: | LAN 1 ... LAN 5 |
| Power indication: | LED PWR (white) – Power |
| Transmission indication: | LED LAN 1 ... LAN 5 (green) - link and data transmission, 1000Mbps link for gigabit connection |
| Temperature range: | -25°C ... +65°C |
| Dimensions: | 97 x 68 x 20 mm |
| Weight: | 0,054 kg |
| Housing construction: | Open-frame module |
| Assembly: | Snap-on spacers, mounting holes in 10.8 mm pitch |
