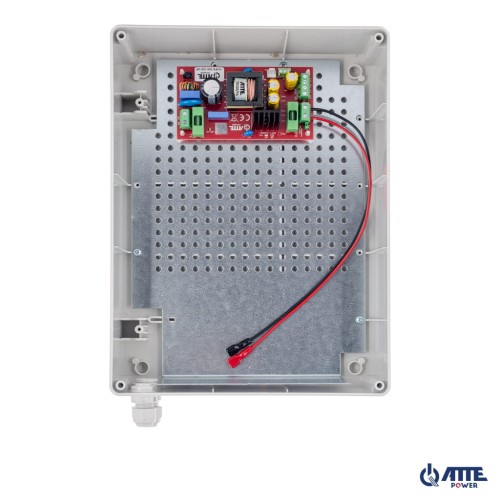

AUPS-100-120-XL1 Buffered SMPS 12V 8A 100W
Description
Buffered switched-mode power supply (SMPS), Vin 230 VAC, Vout 10.8...13.8 VDC, Iout 8 A, Ich 1 / 2 A, Pout 100 W, ABOX-XL1 outdoor enclosure (space for 18 Ah battery).
Key features and functions:
- longer power backup time compared to traditional UPS-based systems
- energy savings and reduced enclosure heating thanks to the high power supply efficiency (90%)
- short-circuit protection (SCP), overload protection (OLP), over heat protection (OHP) and surge protection
- battery protection against: excessive discharge (UVP), overload and reverse polarity
- automatic switchover to battery operation in the event of mains power failure
- OUF and ACF open collector outputs for operation control and integration with other systems
- easy installation of additional modules with a 10.8 mm hole pattern
- possibility of storing excess cables inside the enclosure
- includes 4 brackets for mounting the enclosure without affecting the IP56 protection rating
Additional information:
- using an additional ASUC series converter allows the output voltage to be increased and adjusted to the installation requirements (e.g., 24/48/55 VDC)
- for receivers requiring a stable 12 VDC power supply, such as recorders and NAS drives, we recommend using an additional AVC or AVIC series stabilizing module
- to expand the power supply to 8 output channels, the AF-P8-00-OF fuse module should be used
- optional ADD-PMAXL adapter allows for easy mounting of the enclosure on poles or street light poles
The AUPS series buffer power supply is designed for CCTV systems, access control systems, and alarm systems. It provides a convenient solution for supplying buffered power to receivers requiring uninterrupted operation during periodic mains outages. Using a buffer power supply significantly extends system runtime compared to a standard UPS.
AUPS-100-120-XL1 is designed to work with maintenance-free SLA batteries (gel and AGM).
The ABOX series outdoor enclosures provide a convenient solution for protecting devices and cable connections installed in outdoor conditions. High-quality plastic ensures resistance to UV radiation and other harsh weather conditions. The available models come equipped with a mounting plate featuring specially designed holes in a 10.8 mm pattern. This layout is fully compatible with the mounting hole pattern of installation modules. The system design allows selected devices to be mounted vertically or horizontally in any perforated section of the mounting plate.
Technical data
| Maximum output power: | 120 W |
| Continuous output power: | 100 W |
| Type of power supply: | Buffered SMPS |
| Output voltage: | 10,8...13,8 VDC |
| Input voltage: | 190 ... 260 VAC, 50 Hz |
| Output current - constant: | 8 A |
| Output current - maximum: | 10 A |
| Power supply input protection: | 3.15 A slow-blow fuse |
| Power supply output protection: | Electronic overload protection at 12 A |
| Efficiency: | 90% @100 W |
| Battery circuit protection: | Battery cut-off for voltage below 10.8 V, 10 A fuse |
| Startup in the lack of AC power: | START button |
| Battery charging current: | 1 A or 2 A |
| Battery: | 12 V / 18 Ah Gel or AGM |
| Mains voltage indication: | LED_AC (yellow) - mains voltage present |
| Output voltage indication: | LED 1 (green) - output voltage present |
| Battery indication: | LED 2 (red) - battery charging |
| Temperature range: | -25°C ... +50°C |
| Dimensions: | 220 x 300 x 120 mm |
| Weight: | 1,44 kg |
| IP rating: | IP56 |
| Housing: | ABOX-XL1 / plastic / gray / cable glands 1 x M16, 1 x M20 |
| Assembly: | Wall-mounted, mounting brackets |
| EAN code: | 5902143691204 |
| PKWiU code: | 27.90.41.0 |
| HS code: | 8504 40 |
| CN2020 code: | 8504 40 95 |
