AVIC-200-240-OF Isolated converter stabilizing voltage to 24V 200W
Description
AVIC-200-240-OF is an isolated DC/DC converter. It provides a stable 24 V output when supplied with an input voltage in the range of 16 V to 36 V.

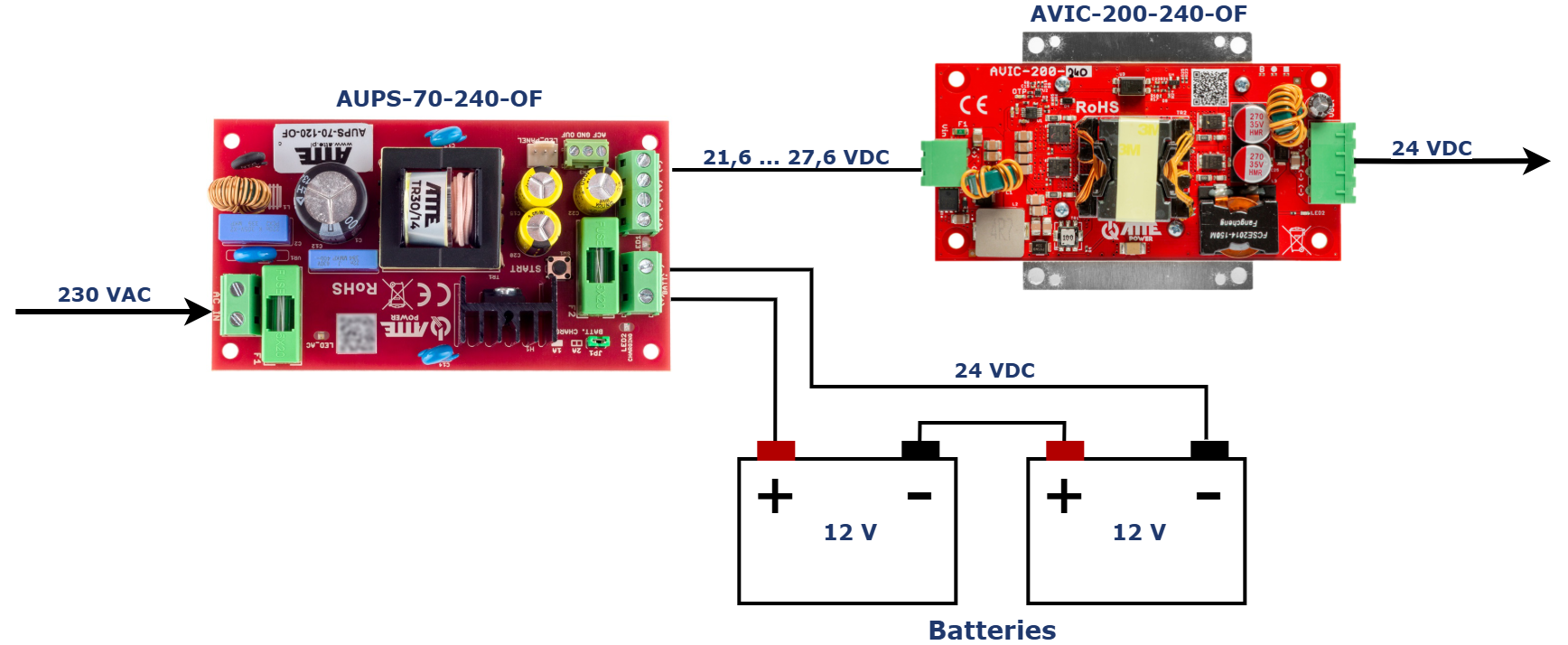

The primary application of the device is voltage stabilization in 24 VDC buffer power systems. The converter ensures safe operation of powered monitoring devices regardless of the battery state of charge.
Galvanic isolation provides additional protection for the system and prevents interference from passing through the AVIC module.
The presence of voltage at the converter output is indicated by LED2 (red).
In addition, the AVIC-200-240-OF features an OTP LED (red) that indicates when the temperature exceeds 70 °C.
Key features and functions:
- wide input voltage range
- high module efficiency (>90%)
- quick and easy setup with no configuration required
- wide operating temperature range (–25 °C to +65 °C)
- output voltage and overtemperature indication
- compact size
- can be mounted on a flat surface
The converter is equipped with an aluminum heatsink, allowing it to be mounted on any flat surface.
The OF (Open Frame) design allows the device to be installed in any enclosure, but the most convenient installation method is to use dedicated ABOX series enclosures and mounting plates equipped with 10.8 mm hole pattern.
Technical data
| Input Voltage: | 16 ... 36 VDC |
| Output Voltage: | 24 VDC +/-5% |
| Output current: | 8 A |
| Output power: | 200 W |
| Efficiency: | 92% @Vin = 28 V, Pout = 200 W |
| Isolation: | 1 kV |
| Converter idle current: | 30 mA @Vin = 28 V |
| Surge protection: | Vin, Vout |
| Overload protection: | Vin |
| Thermal protection: | Thermal protection at 80 °C |
| Output voltage indication: | LED2 (red) - converter output voltage indication |
| Temperature range: | -25 ... +65°C |
| Dimensions: | 70 x 115 x 31 mm |
| Weight: | 0,14 kg |
| Housing construction: | Open-frame module |
| Assembly: | Snap-in spacer pins, mounting holes in a 10.8 mm hole pattern. Wall-mounted using holes on the aluminum heat sink. |
| EAN code: | 5902143691716 |
| PKWiU code: | 27.90.41.0 |
| HS code: | 8504 40 |
| CN2020 code: | 8504 40 95 |
