xPoE-3-10 3-port PoE switch, extender, 3xPoE IN/OUT PASSIVE

PoE switch, 3-port 10/100 Mbps, extender (3xPoE IN/OUT PASSIVE), powered via PoE (max 70W).

Attention! The xPoE-3-10 version can ONLY be powered via passive PoE (using passive PoE switches or adapters) or any ATTE xPoE series device.

If you have a PoE switch operating in the 802.3af/at standard, use the xPoE-3-11A version.

Key features and functions:

• the miniature design allows mounting in the camera base
• when powered by another passive PoE switch, it distributes power to 2 PoE 802.3af/at cameras.
• cascade power option – one module powers another
• renews and distributes the network signal (fully functional 100Mbps switch)
• up to 70 W of total power
• quick and easy setup with no configuration required
• wide operating temperature range
• low power consumption (< 1W)

xPoE-3-10 s designed as a LAN and PoE extender (repeater). It renews the network signal and transfers PoE to selected outputs. It is most often used as a ‘booster’ to extend the network over distances greater than 100 m. Additionally, it is ideal as an ‘active splitter’ when multiple PoE devices (e.g., several IP cameras) need to be powered from a single UTP cable, or when an additional network branch is required.

Unmanaged PoE switches and extenders are designed to work with IP cameras and other network devices powered by PoE 802.3af/at and PoE PASSIVE standards.

The well-thought-out design of the device itself acts as an enclosure. The combination of laminate and milled polycarbonate provides protection and insulation while keeping the device as compact as possible. The positioning of the RJ-45 connectors is also not accidental—it ensures that the connected cables do not take up any additional space.

Installation notes

• xPoE-3-10 can ONLY be powered via passive PoE (using passive PoE switches or adapters) or any ATTE xPoE series device
• PoE cannot be disabled on any of the ports

Examples of applications

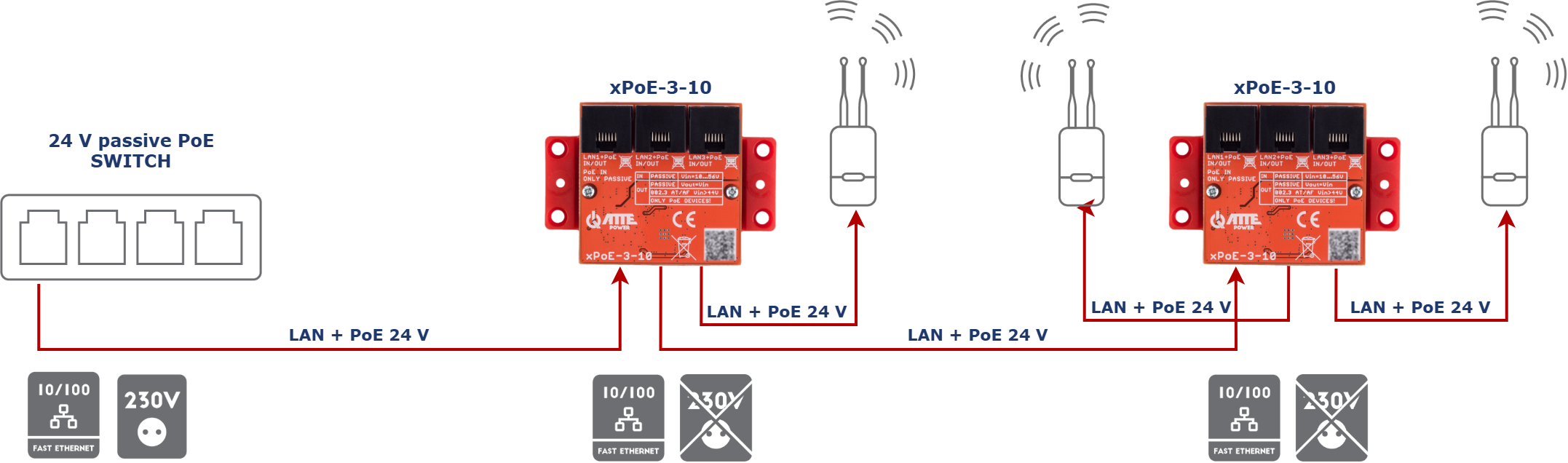

Example of using xPoE-3-10 to distribute passive PoE 24 VDC and data transmission to Wi-Fi access points.
