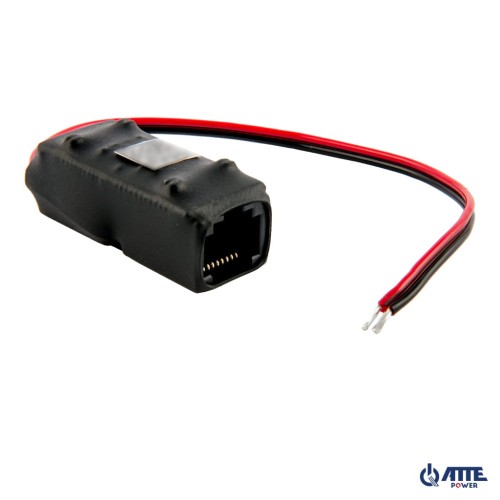

AEPI-1-10-HS 1-Channel 10/100 Mbps passive PoE adapter
Manufacturer:
ATTE
Product code:
AEPI-1-10-HS
Price:
Net price:
€5.60
Availability:
In stock
Dispatched within:
24 hours
Description
AEPI-1-10-HS is an adapter (injector) designed to power IP CCTV devices operating in 802.3af/at PoE and Passive PoE standards.
PoE is available on one of the RJ-45 ports (the port with an LED indicator). The other RJ-45 port is used to connect LAN.
Examples of applications

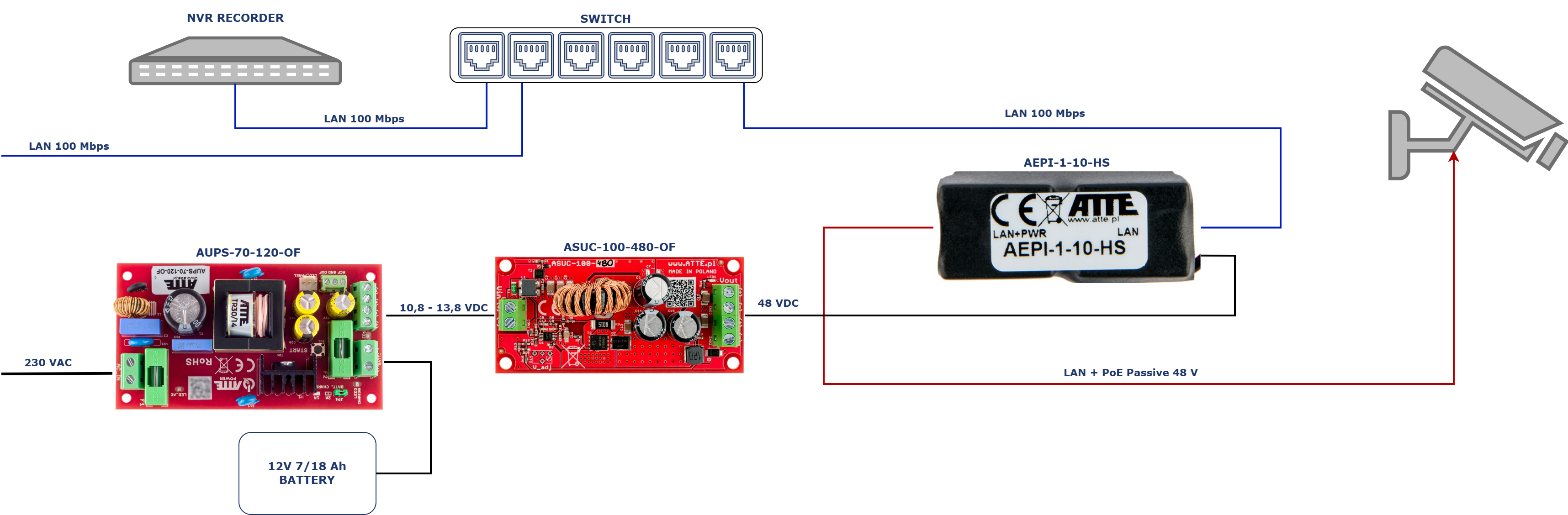

Example of using the AEPI-1-10-HS to power a single camera.
Technical data
| Total number of ports: | 1 LAN port, 1 PoE port |
| PoE OUT: | LAN + PWR |
| LAN 10/100Mbps ports: | LAN, LAN + PWR |
| LAN + PoE OUT 10/100Mbps ports: | LAN + PWR |
| Input Voltage: | 10...56 VDC (cables) |
| Output PoE Voltage: | Vout = Vin |
| Overload protection: | 0.75A polymer fuse |
| Temperature range: | -25°C ... +50°C |
| Dimensions: | 17 x 45 x 15 mm |
| Weight: | 0,012 kg |
| IP rating: | IP20 |
| Housing construction: | Insulating polyethylene foil |
| EAN code: | 5902143690092 |
| PKWiU code: | 27.33.13.0 |
| HS code: | 8536 90 |
| CN2020 code: | 8536 90 95 |
Files to download:
