AEPI-4-10-OF 4-Channel 10/100 Mbps passive PoE adapter
Description
Passive 4-channel PoE adapter, Fast Ethernet 10/100 Mbps + PoE, Vout=Vin, polymer fuses, open-frame module.
Key features and functions:
- ability to power 4 802.3at/af or passive PoE devices
- clear LED indication of power status
- up to 40 W of power per PoE port
- independent polymer fuse for each PoE channel
- quick and easy setup with no configuration required
- wide input voltage range; output voltage = input voltage
- compact module size
The OF (Open Frame) design allows the device to be installed in any enclosure, although the most convenient method is to use dedicated ABOX series enclosures and mounting plates with a special 10.8 mm hole pattern. The spacing matches the mounting holes of the built-in modules. This system allows vertical or horizontal installation of selected devices in any perforated section of the enclosure or mounting plate.
Examples of applications

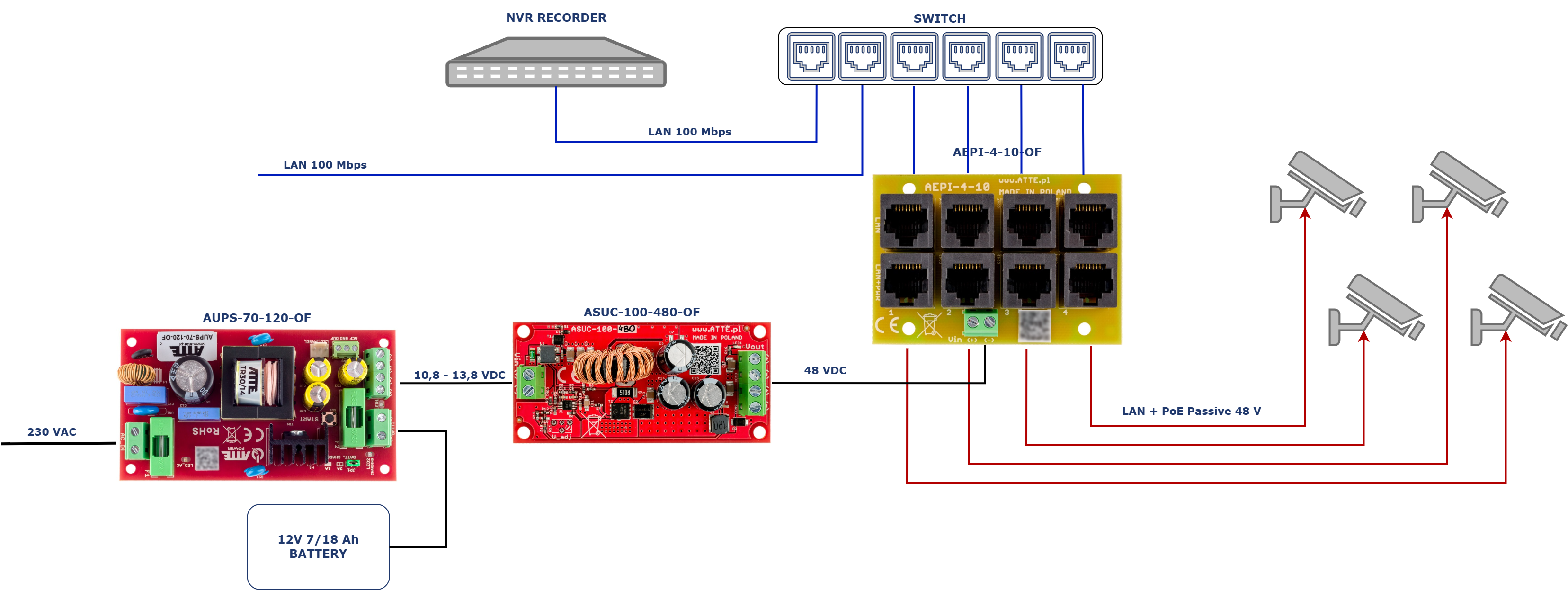

Example of using the AEPI-4-10-OF adapter to connect 4 PoE IP cameras with buffer power supply (battery backup).
Technical data
| Total number of ports: | 4 PoE ports, 4 LAN ports, 1 screw terminal |
| PoE OUT: | LAN + PWR 1...4 |
| LAN 10/100Mbps ports: | LAN 1...4 |
| LAN + PoE OUT 10/100Mbps ports: | LAN + PWR 1...4 |
| Input Voltage: | 10...56 VDC |
| Output PoE Voltage: | Vout = Vin |
| Overload protection: | polymer fuse (4 x 0.75 A) |
| Temperature range: | -25°C ... +50°C |
| Dimensions: | 77 x 51 x 17 mm |
| Weight: | 0,05 kg |
| IP rating: | IP20 |
| Housing construction: | Open-frame module |
| Assembly: | Snap-in spacer pins, mounting holes in 10.8 mm hole pattern |
| EAN code: | 5902143690108 |
| PKWiU code: | 27.33.13.0 |
| HS code: | 8536 90 |
| CN2020 code: | 8536 90 95 |
