AUPS-100-122-OF Buffered SMPS 12V 8A 100W

AUPS-100-122-OF is a buffered power supply with increased output voltage and higher battery charging current, designed for installations subject to frequent power outages or with intermittent/cyclical mains power, such as locations where 230 VAC is only available at night.

The device is a convenient solution for supplying buffered power to receivers requiring uninterrupted operation during periodic mains outages. Using a buffer power supply significantly extends system runtime compared to a standard UPS.

It is suitable for construction sites, Tower CCTV systems, and other locations with regularly interrupted mains power, including circuits supplying street lighting.

AUPS-100-122-OF is designed to work with maintenance-free SLA batteries (gel and AGM).

Key features and functions:

• longer power backup time compared to traditional UPS-based systems
• energy savings and reduced enclosure heating thanks to the high power supply efficiency (90%)
• short-circuit protection (SCP), overload protection (OLP), over heat protection (OHP) and surge protection
• battery protection against: excessive discharge (UVP), overload and reverse polarity
• automatic switchover to battery operation in the event of mains power failure
• OUF and ACF open collector outputs for operation control and integration with other systems
• easy installation in ABOX series enclosures with 10.8 mm hole pattern

Additional information:

• using an additional ASUC series converter allows the output voltage to be increased and adjusted to the installation requirements (e.g., 24/48/55 VDC)
• for receivers requiring a stable 12 VDC power supply, such as recorders and NAS drives, we recommend using an additional AVC or AVIC series stabilizing module
• to expand the power supply to 8 output channels, the AF-P8-00-OF fuse module should be used

The AUPS series buffer power supply is designed for CCTV systems, access control systems, and alarm systems. It provides a convenient solution for supplying buffered power to receivers requiring uninterrupted operation during periodic mains outages. Using a buffer power supply significantly extends system runtime compared to a standard UPS.

The OF (Open Frame) design allows the device to be installed in any enclosure, although the most convenient method is to use dedicated ABOX series enclosures and mounting plates with a special 10.8 mm hole pattern. The spacing matches the mounting holes of the built-in modules. This system allows vertical or horizontal installation of selected devices in any perforated section of the enclosure or mounting plate

Examples of applications

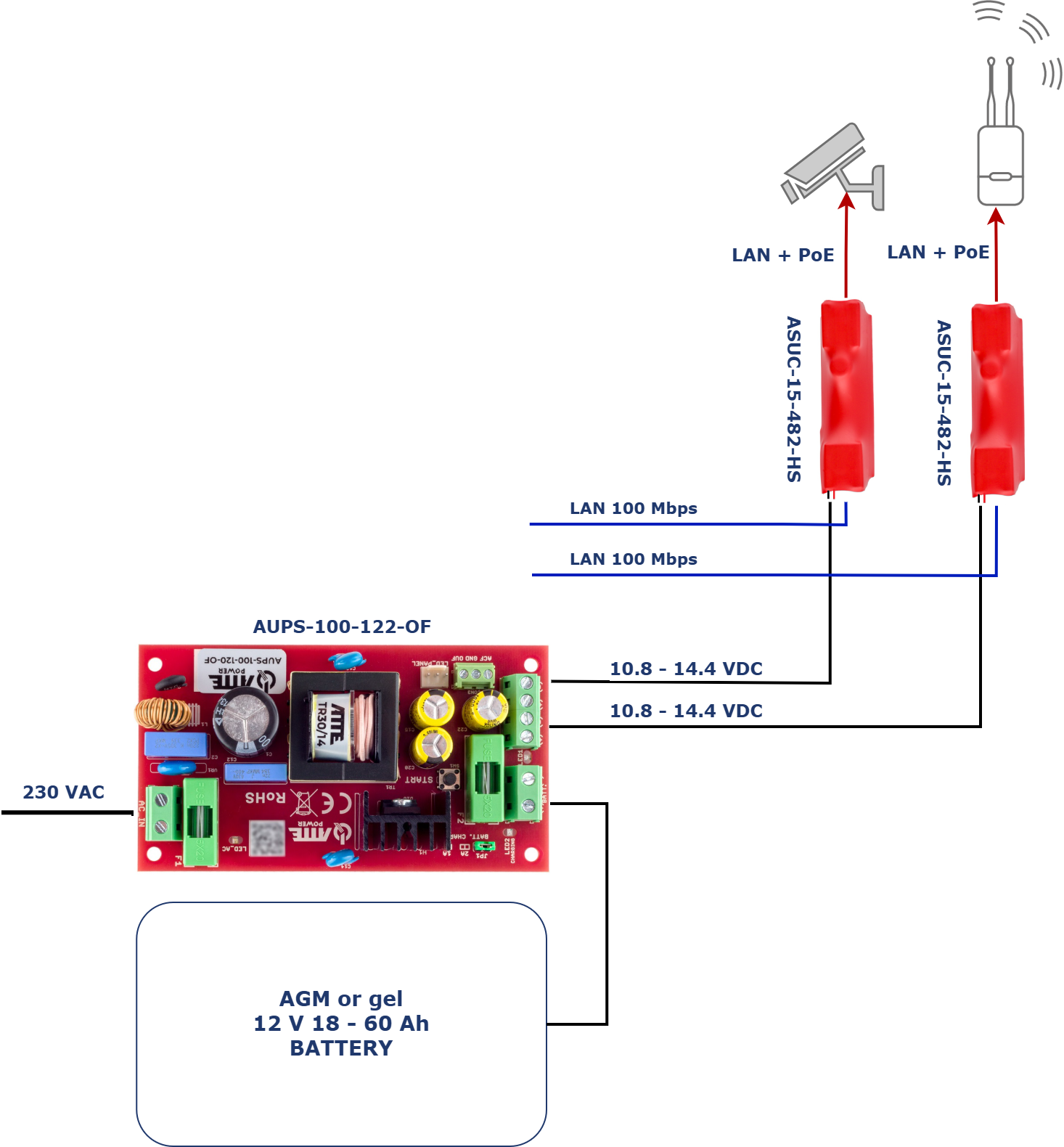

Example application of AUPS-100-122-OF for powering a camera and access point with battery backup.

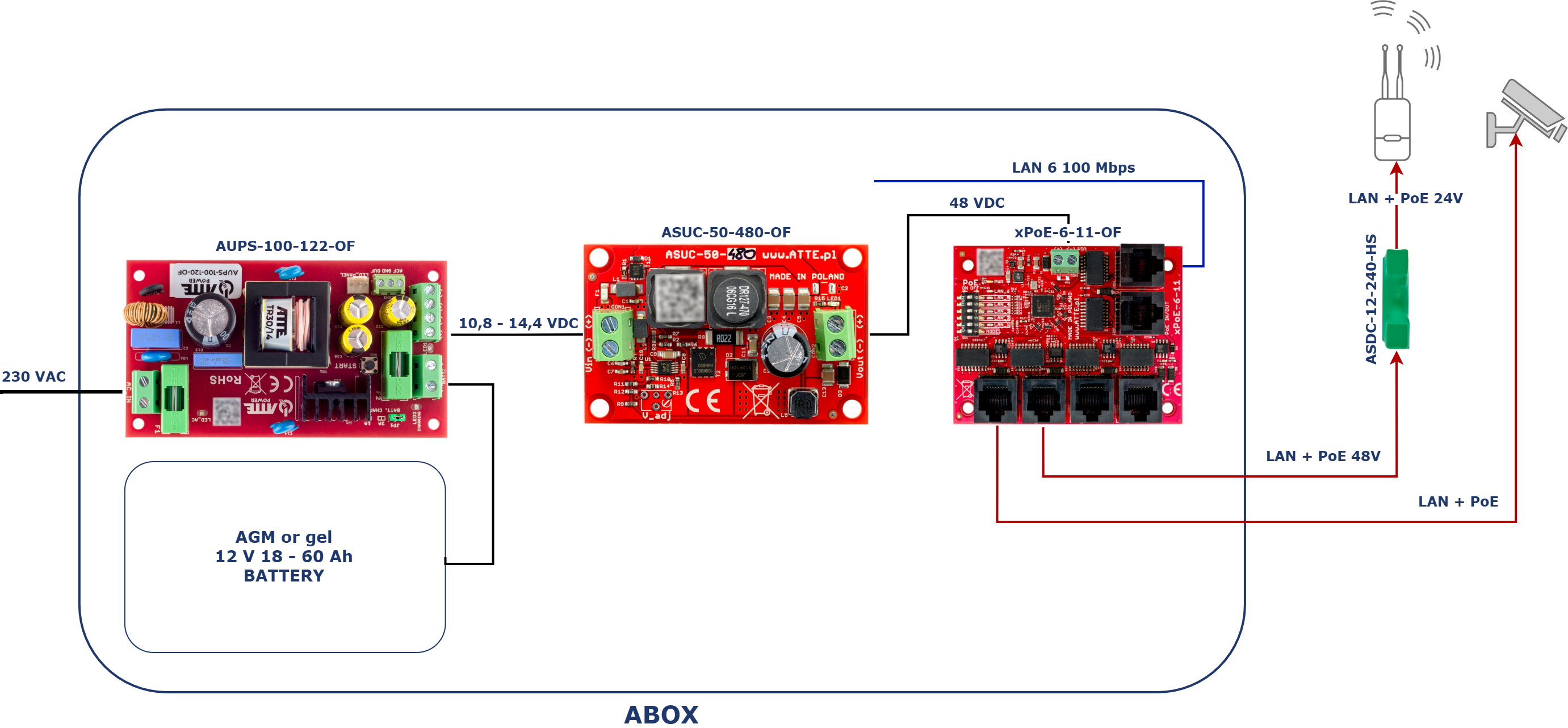

Example application of AUPS-100-122-OF for powering a camera and a 24 V PoE passive access point with battery backup, using an xPoE-6-11-OF PoE switch.

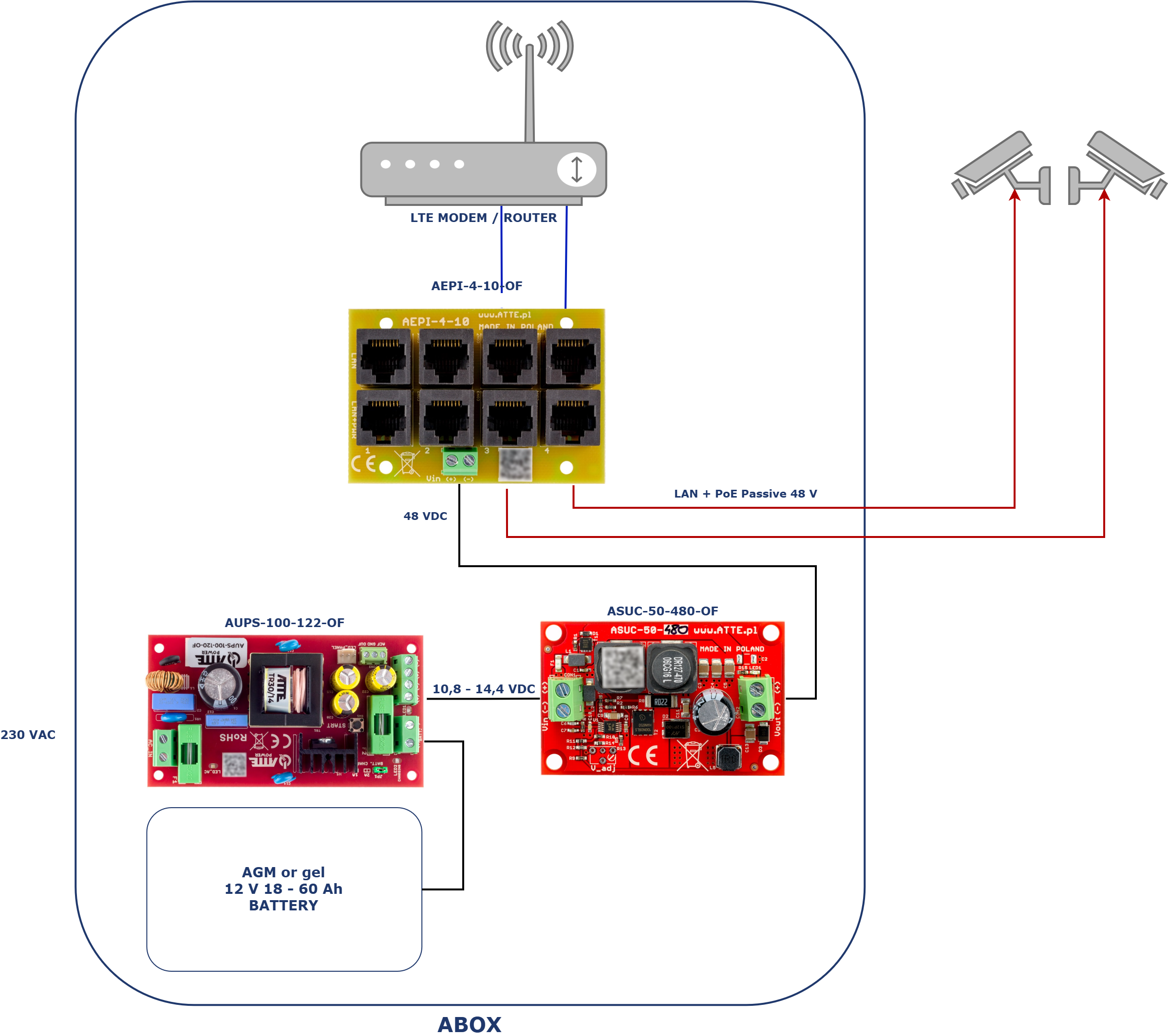

Example application of AUPS-100-122-OF to power two cameras with battery backup, using an AEPI-4-10-OF PoE injector.
